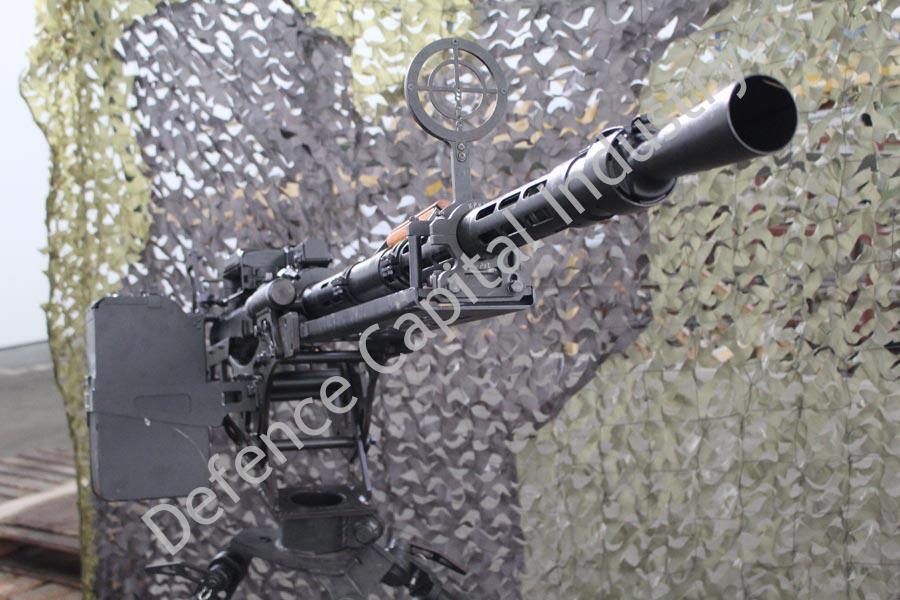

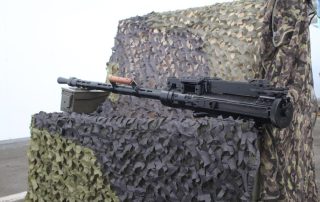

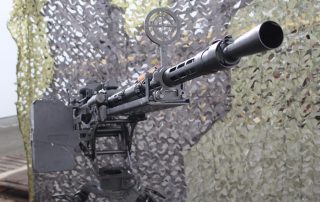

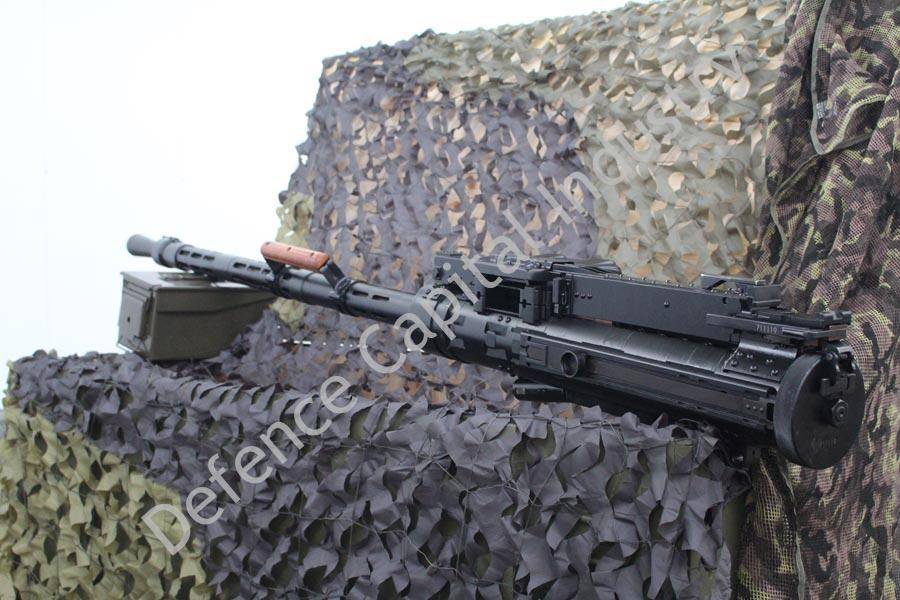

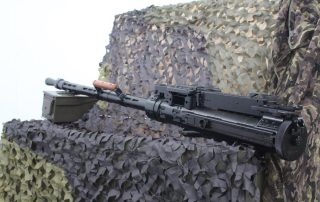

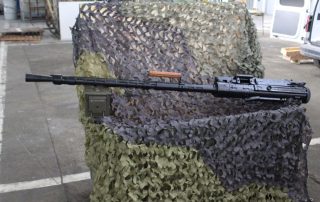

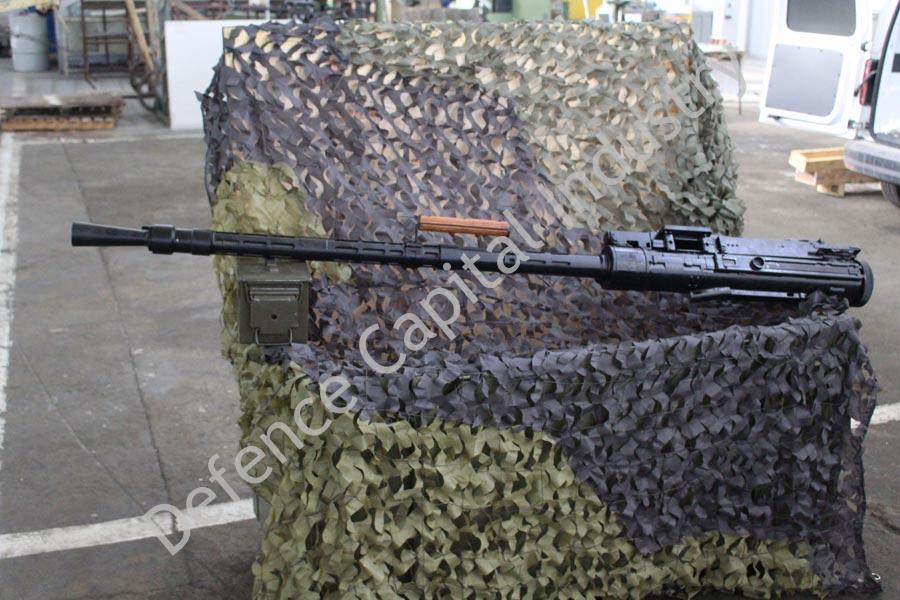

14.5 mm HEAVY MACHINE
GUN DHMG-145-01
APPLICATION AND PRINCIPLE DATA:

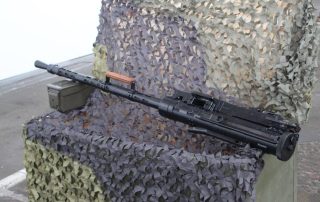

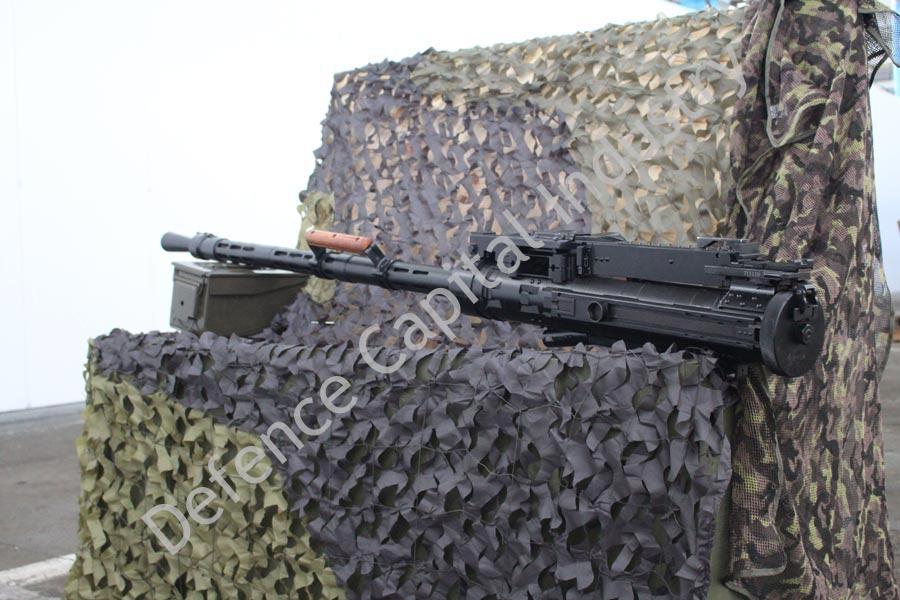

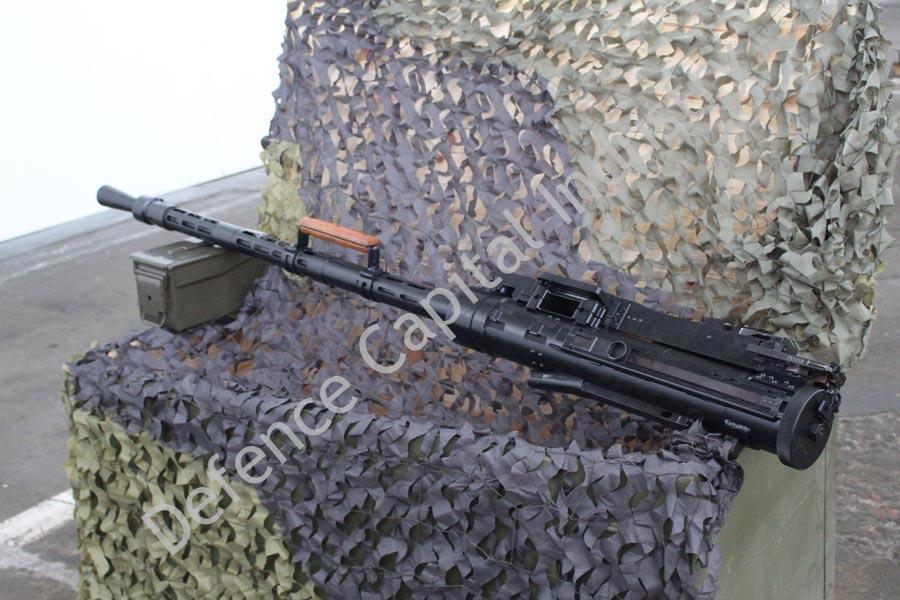

14.5×114 mm Heavy Machine Gun DHMG-145-01 is powerful automatic weapons which is upgraded version of the original (KPVT) model for operation on different applications.
14.5 mm HMG DHMG-145 the main application to operate as fire support from different type of gun-ring mounts, turrets, remote-weapon stations on different type Armored Combat Vehicles, Armoured Personal Carriers, vessels and motor-boats and other carriers with ability to engage through solenoid trigger any target on the ground as well as: low-flying aircraft, drones, paratroopers, light armoured vehicles, etc.

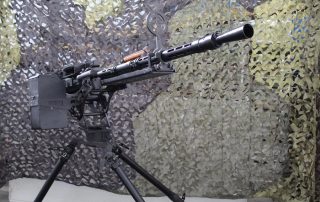

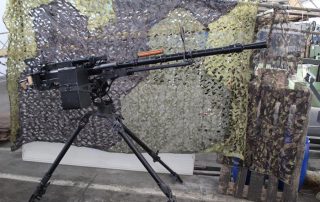

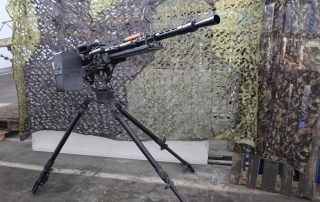

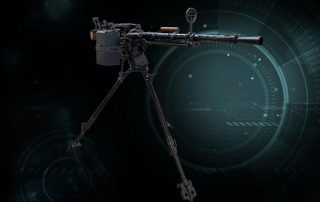

14.5 mm HMG DHMG-145-01 also capable of operation as an infantry unit based on DHT-01 heavy infantry tripod with ability to target lightly armoured targets, shelters at range up to 3 500 m.
The DHT-01 heavy tripod consist: heavy tripod and gun-mount (cradle).
PERFORMANCE
BASIC TECHNICAL DATA
TARGET RANGE
- Effective range: 8 000 m
- Maximum range: 10 000 m
- Rate of fire: 600 rds/min
- Muzzle velocity: 980 to 1010 m/s
- Traverse: n x 360°
- Elevation: -15° to 88°
- Calibre, mm: 14.5×114 mm
- Fire mode: Full automatic
- Action: Short recoil operation
- Feed system: belt/right and left
- Weapon length/mm: 1 980
- Barrel length/mm: 1 342
- Mass, kg: 50.2
- Rate of fire, shot / min: 70-80
- Ground: 2000 m
- Air: 2200 m
- Barrel cooling: Air
- Power supply of electric trigger: 27 V
- Length: 1980 mm
- Feed: belt, RH/ LH
What really matters – Responsibility

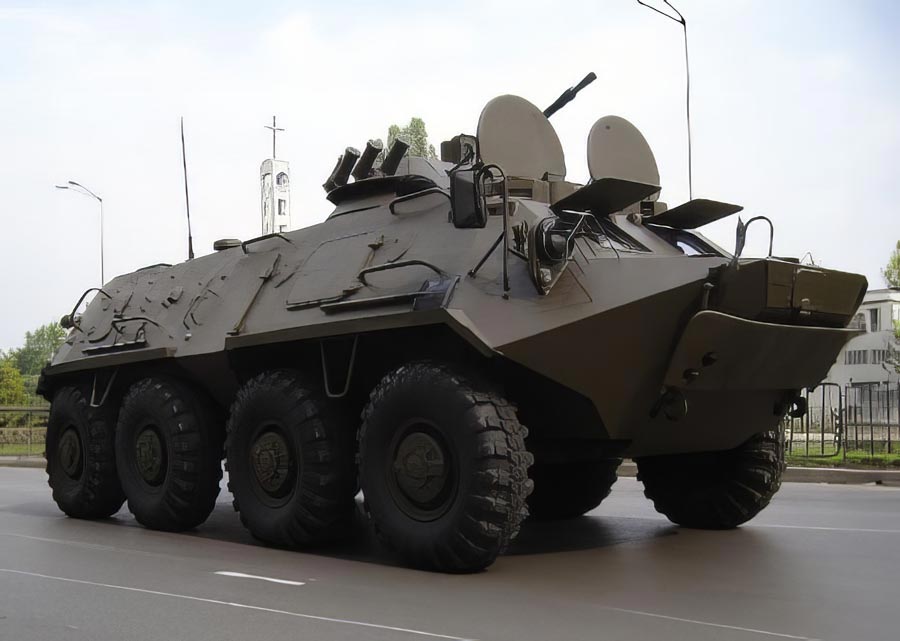

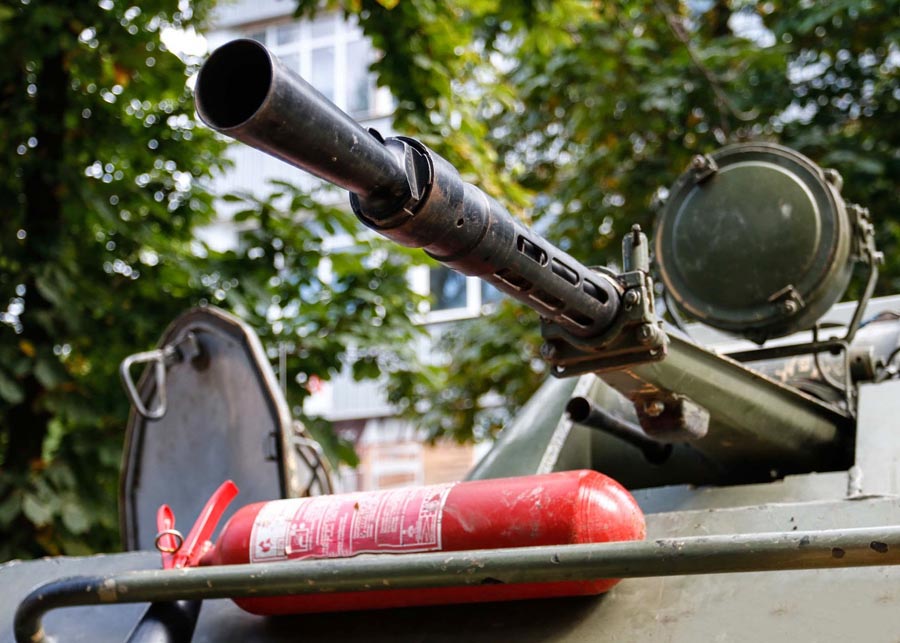

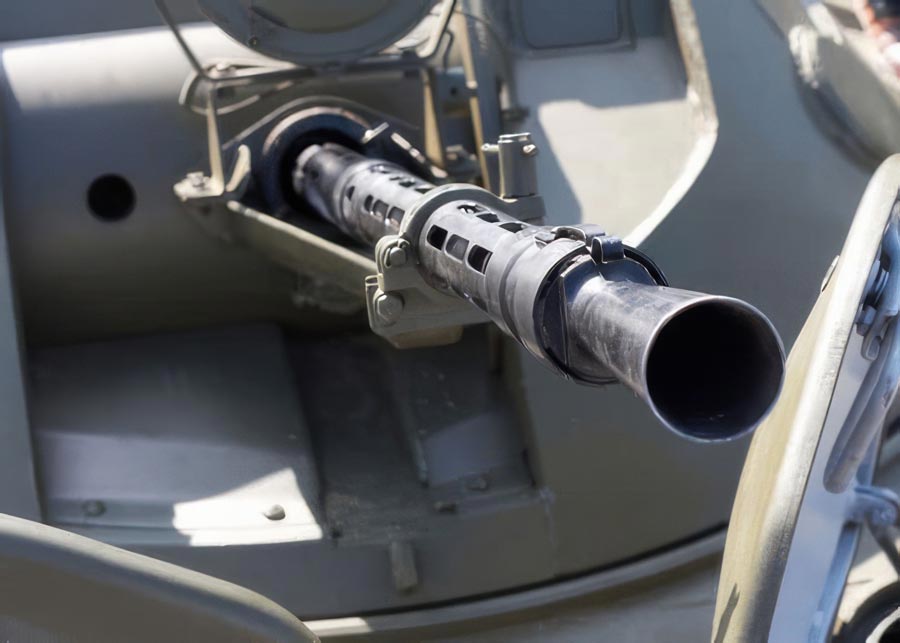

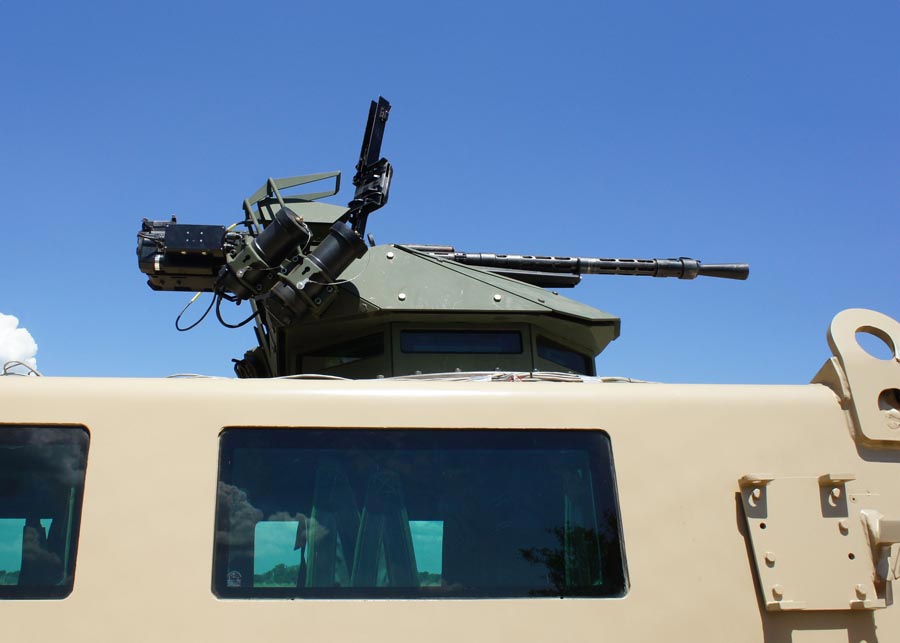

ARMORED COMBAT VEHICLE INSTALLATION
The 14.5 mm HMG DHMG-145 with а main purpose for operation from different type of gun-ring mounts, turrets, remote-weapon stations on different type Armored Combat Vehicles, Armoured Personal Carriers, vessels, motor-boats and other carriers with ability to engage through solenoid trigger any target on the ground as well as: low-flying aircraft, drones, paratroopers, light armoured vehicles, etc.

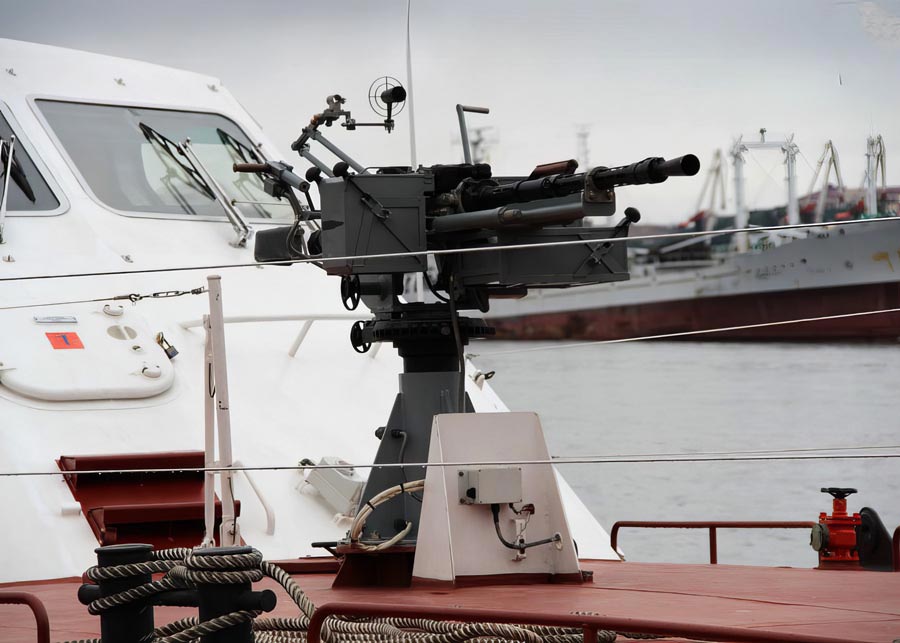

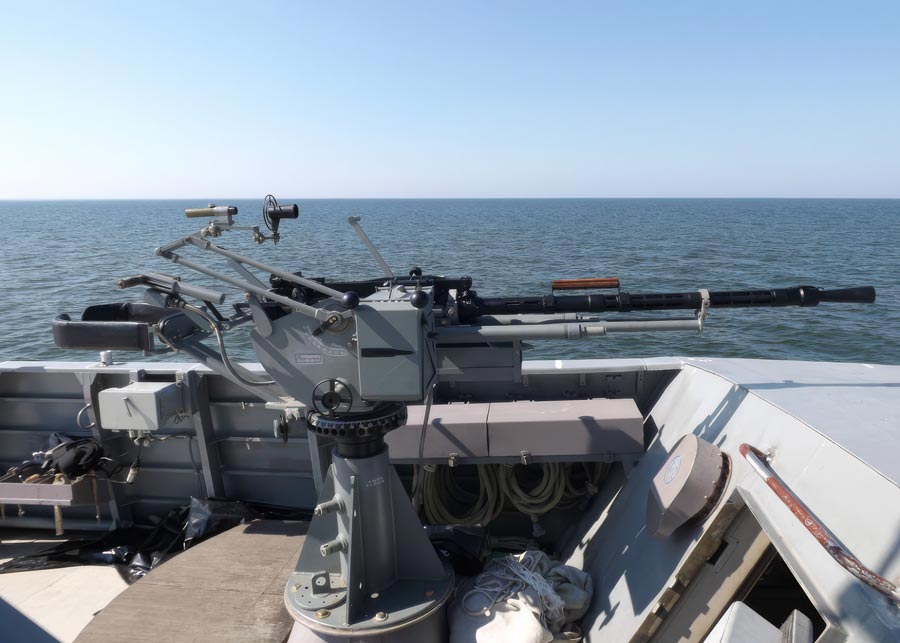

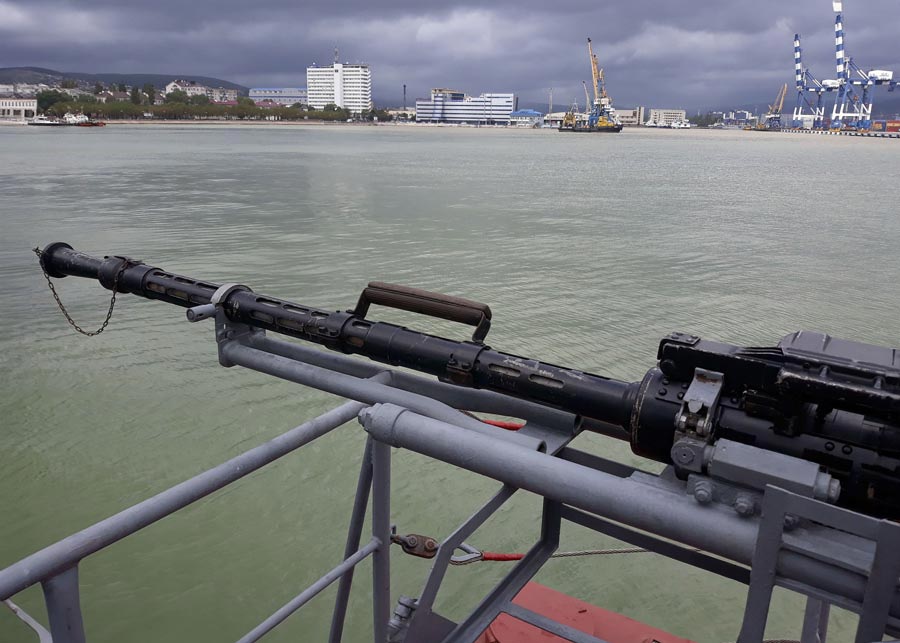

NAVAL INSTALLATION ON SEA VESSELS
STRUCTURE AND FUNCTION

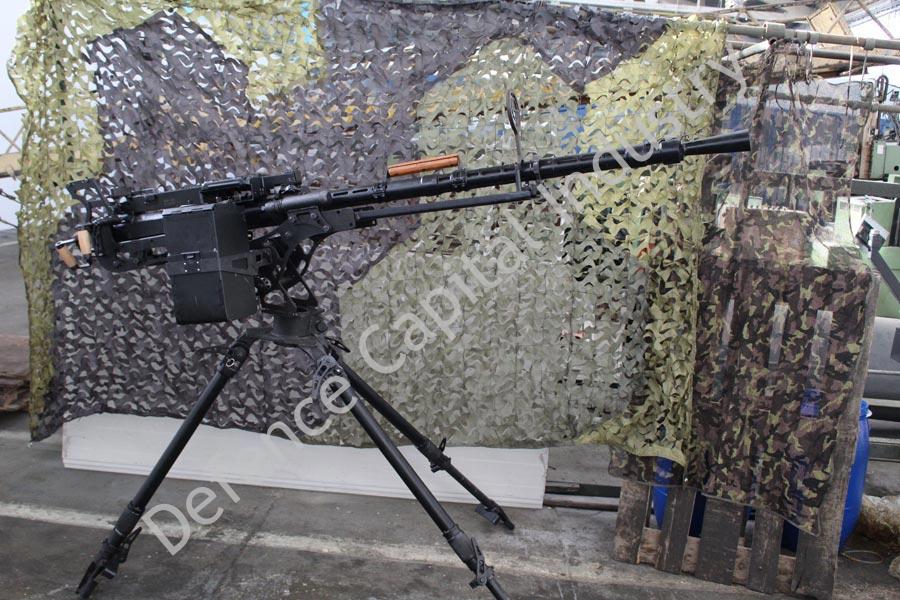

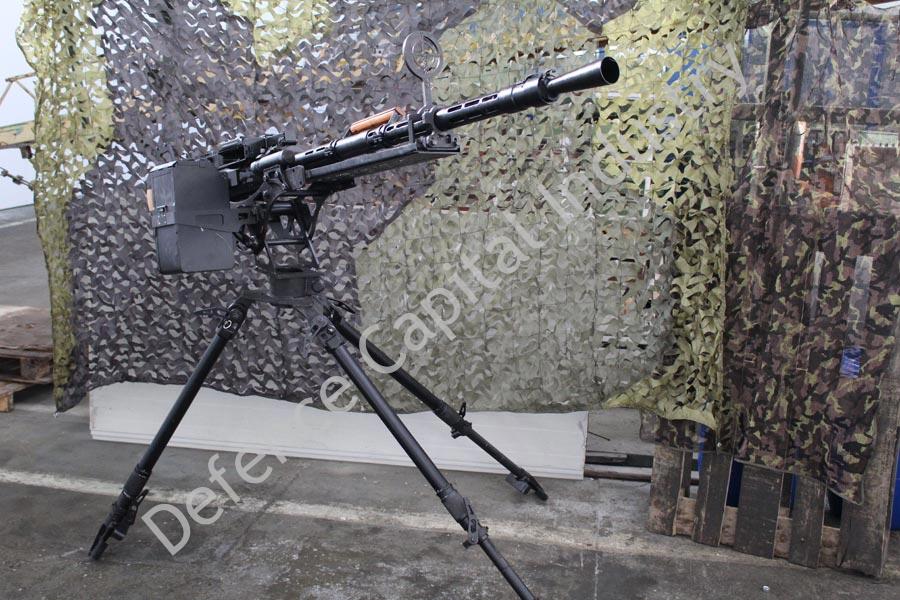

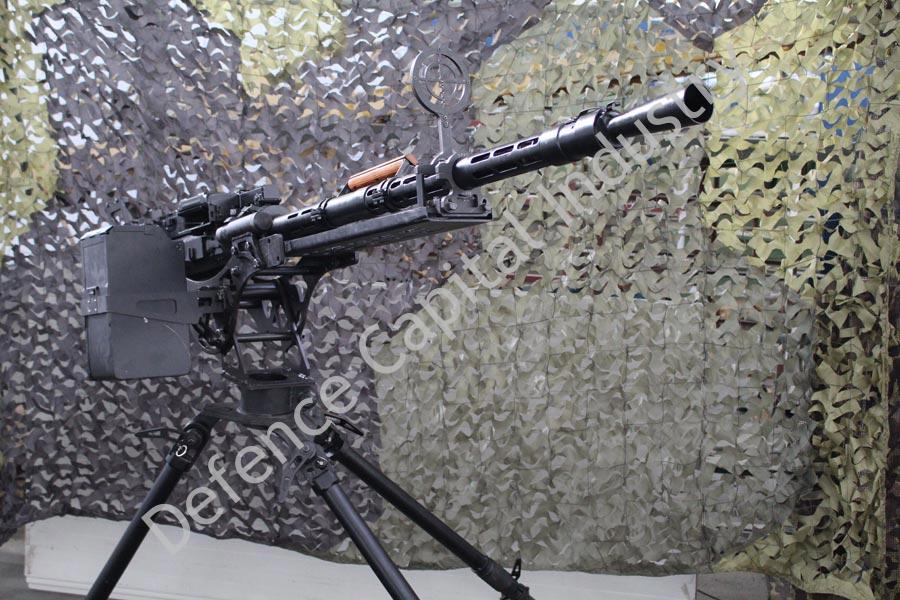

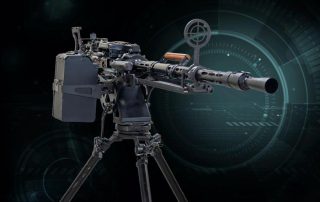

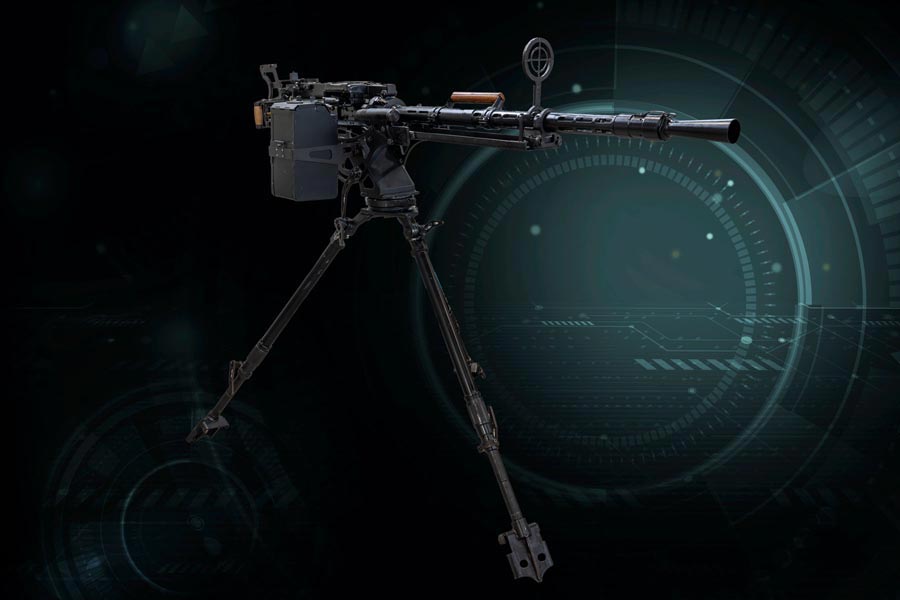

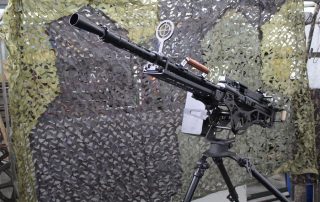

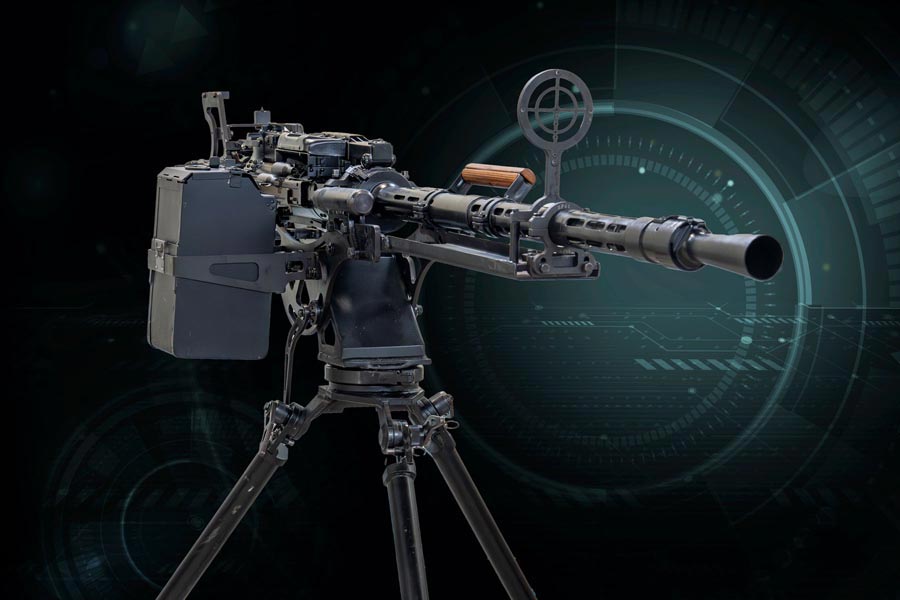

INFANTRY OPERATION

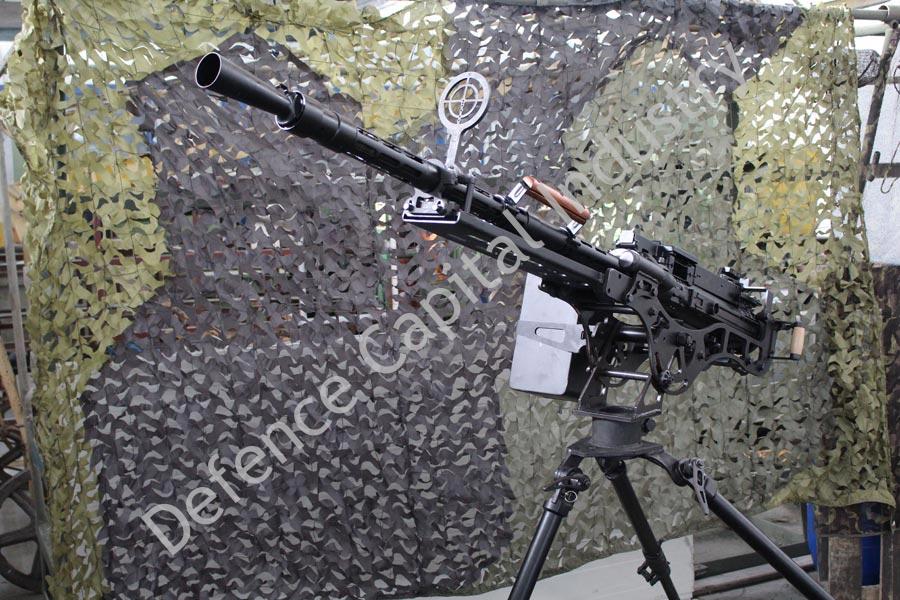

The 14.5 mm HMG DHMG-145 has ability to operate as Infantry weapon for land force fire support based on DHT-01 heavy infantry tripod with a functionality of locking in any firing position (low ground, high ground).
BASIC TECHNICAL DATA
- Weapon: 14.5 mm HMG DHMG-145 or (KPVT)
- on horizontal firing position: – 360°
- on vertical firing position: + (63°-65°)/- (5°-7°);
- Operation: 2x – persons
- Dimensions: 2 400 X 1 600 X 1 350 mm in set
