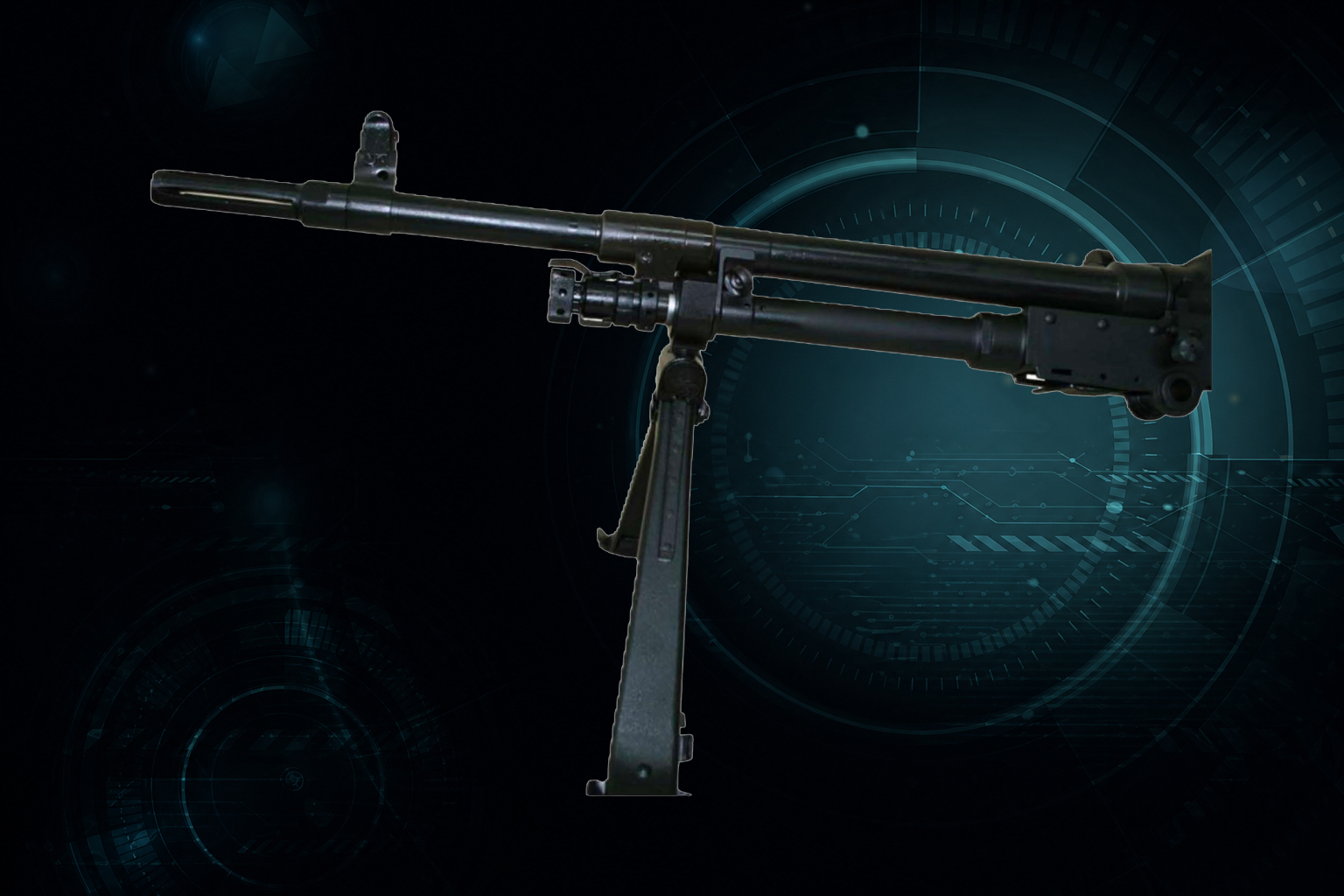

7.62 mm GPMG
DMG-762-01

APPLICATION AND PRINCIPLE DATA:

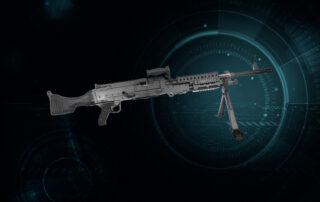

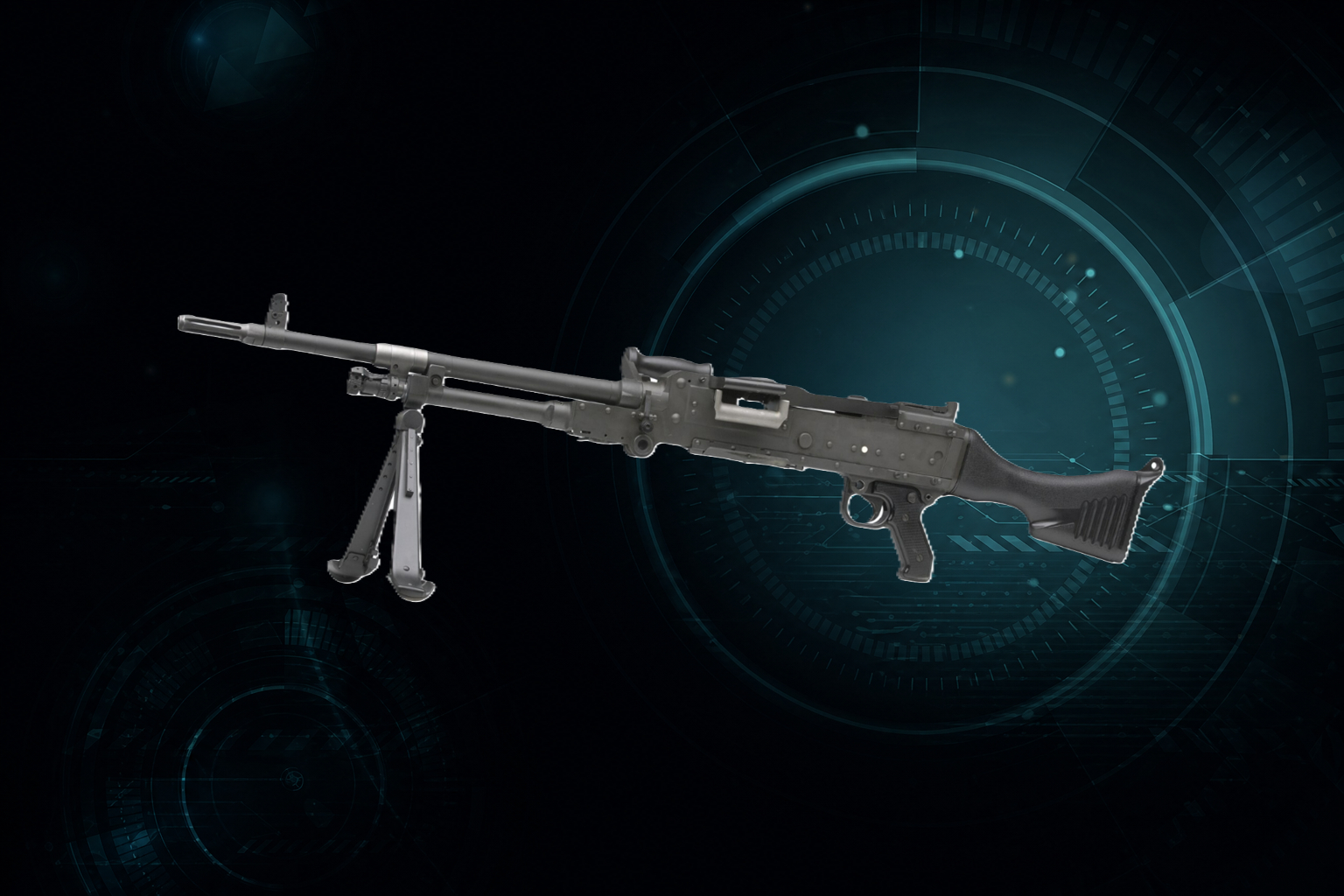

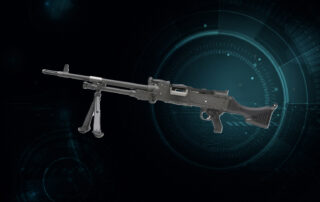

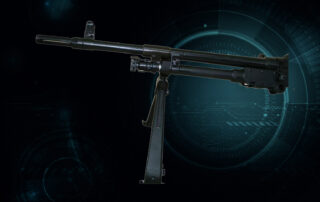

The 7.62 mm NATO mm General Purpose Machine Gun (GPMG) model DMG-762-01 is an automatic, air-cooled, gas-operated machine gun, firing belt-fed 7.62×51mm NATO from an open bolt.

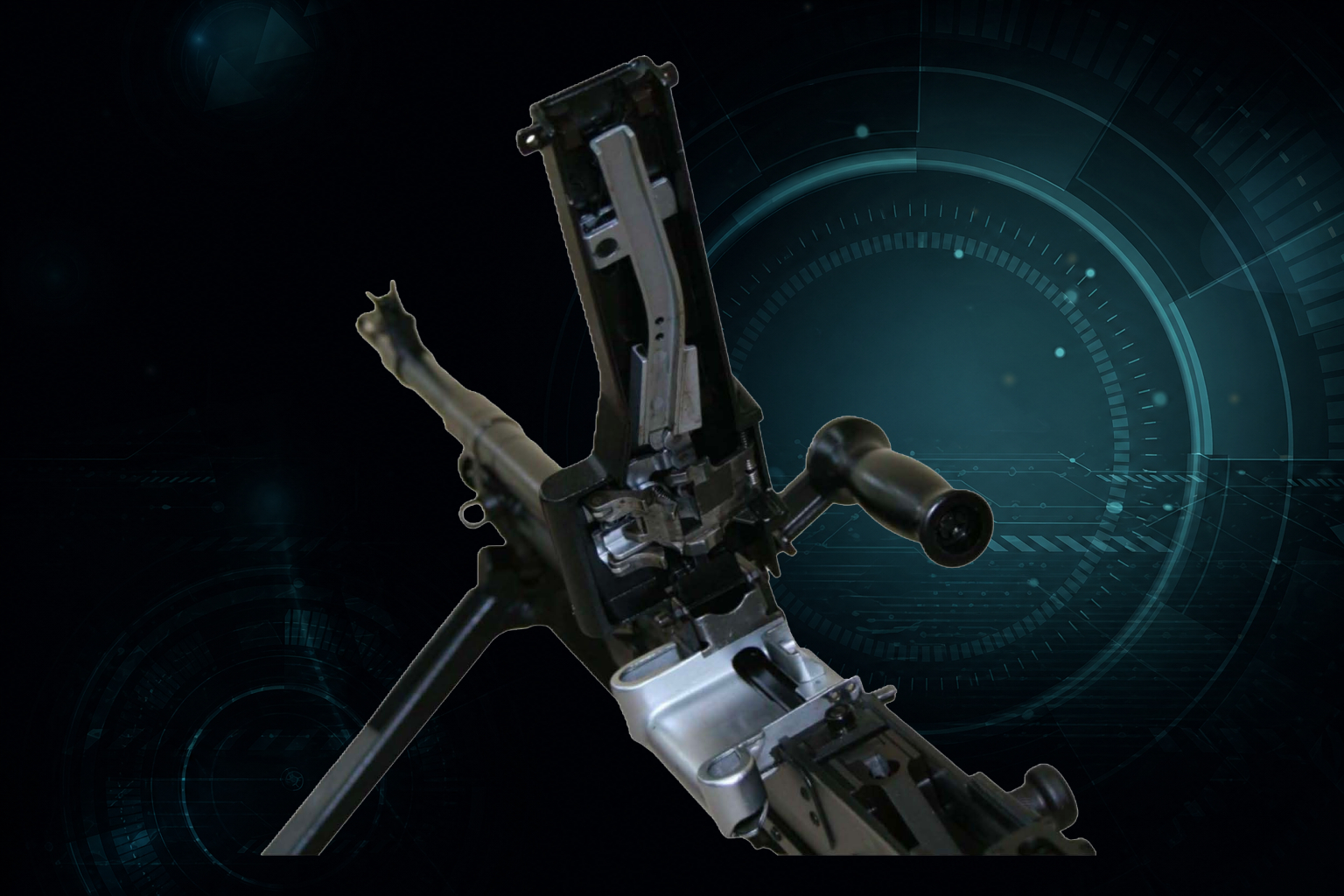

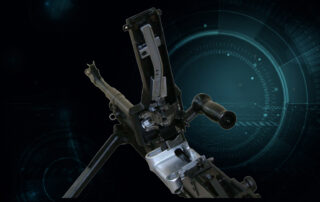

It’s operates via a long-stroke piston system, and fires from an open bolt. Both the spring-powered extractor and ejector are contained in the bolt. After firing, spent cartridge casings are removed downwards through an ejection port normally covered by a spring-loaded dust cover at the bottom of the receiver.

PERFORMANCE

BASIC TECHNICAL DATA

Effective Range:

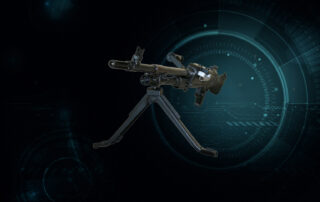

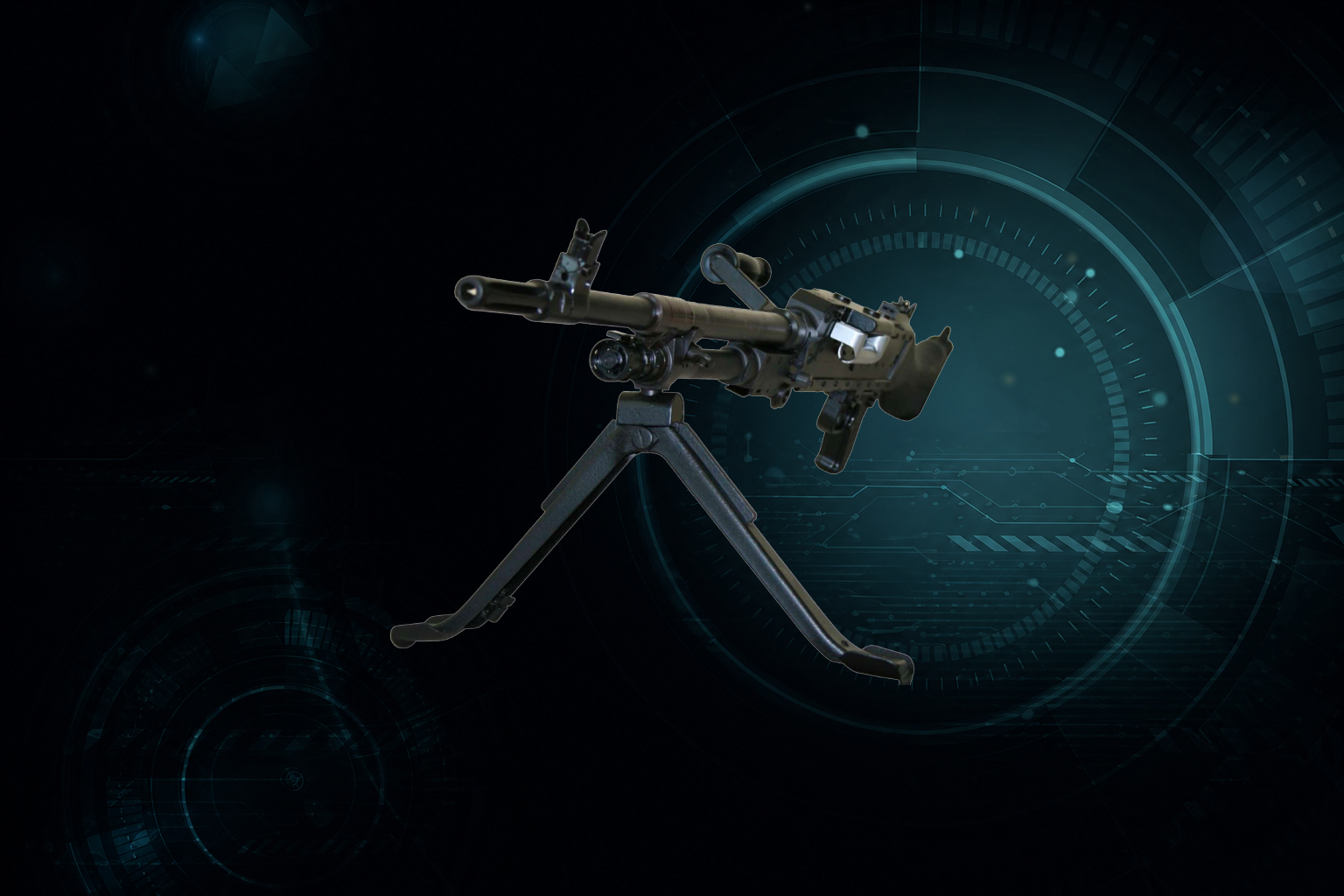

  • From bipod: 800 m
  • From tripod: 1800 m
  • Maximum range: 3,725 m

• Caliber: 7.62×151 mm NATO
• Action: gas-operated long-stroke piston, open breach
• Rate of fire: 650-1000 rounds/min
• Muzzle velocity: 840 m/s

• Weight: 11.8 kg
• Length: 1,260 mm
• Barrel length: 630 mm
• Width: 118.7 mm
• Height: 263 mm

What really matters – Responsibility

ARMOURED PERSONNEL CARRIER OPERATION

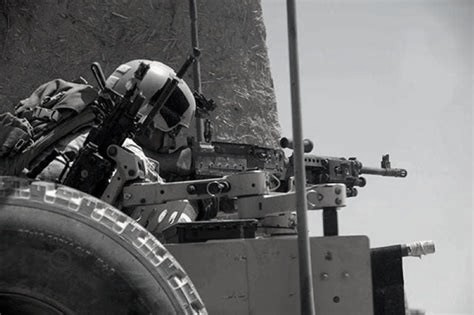

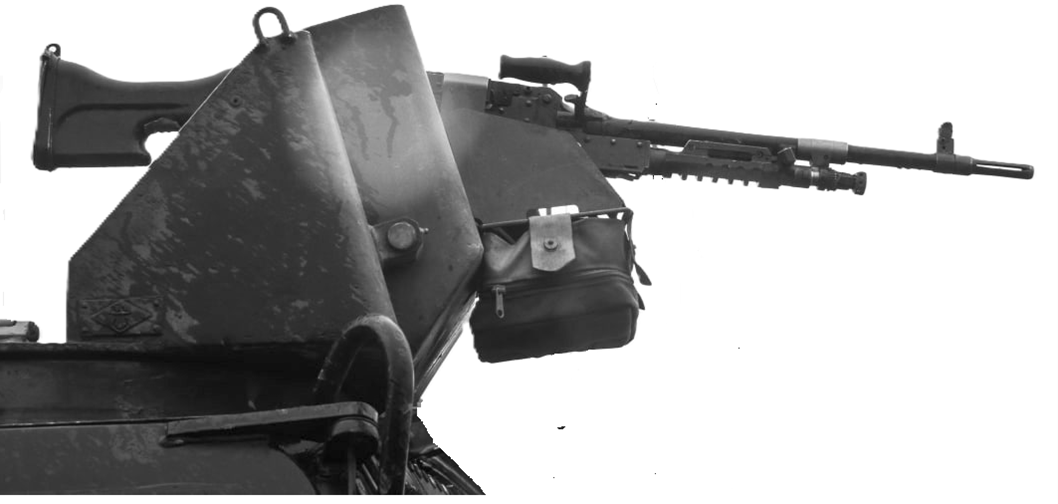

7.62 mm GPMG DMG-762-01 can be mounted on many different types of Armored Personnel Carriers (APC) with ability to operate from APC hatch or through Gun Mount or Control Weapon Gun Station by solenoid.

AIR-FORCE AND NAVAL FORCE DESIGNATION

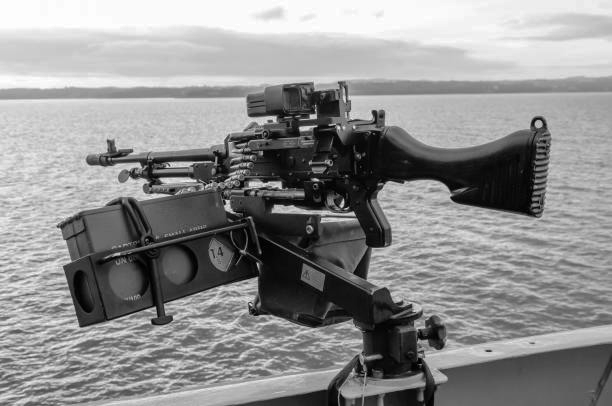

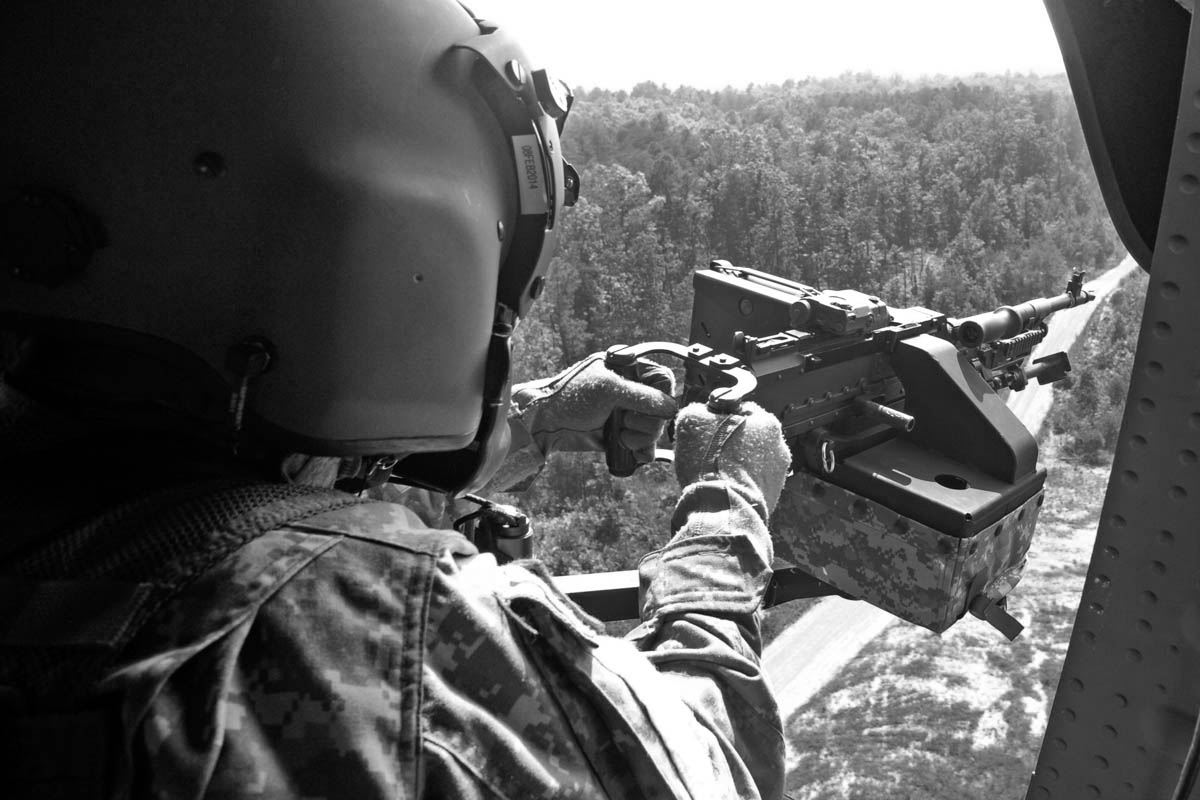

7.62 mm GPMG DMG-762-01 can be mounted on board of different types of sea boats or vessels and helicopters.

What really matters – Quality Technical Support

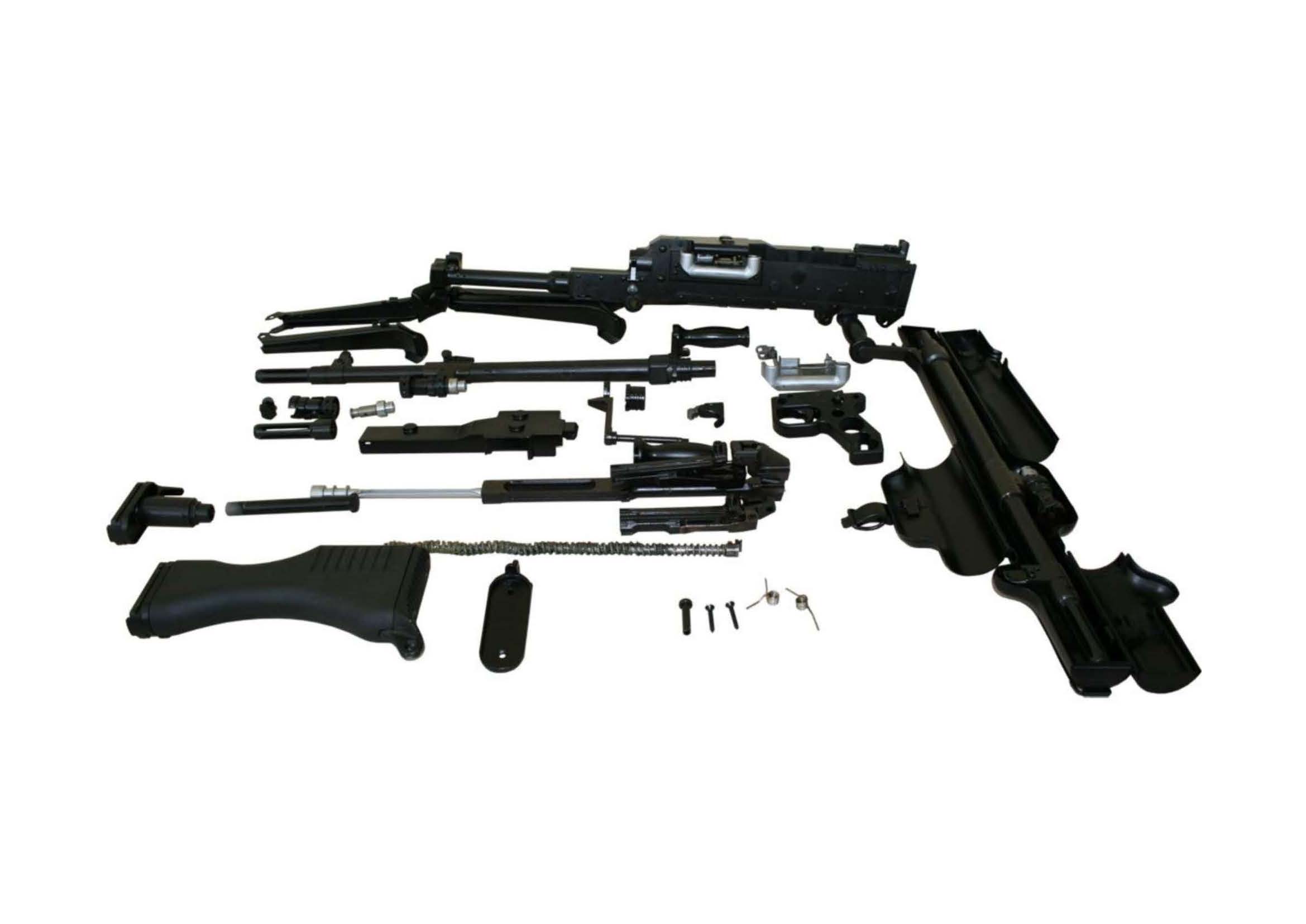

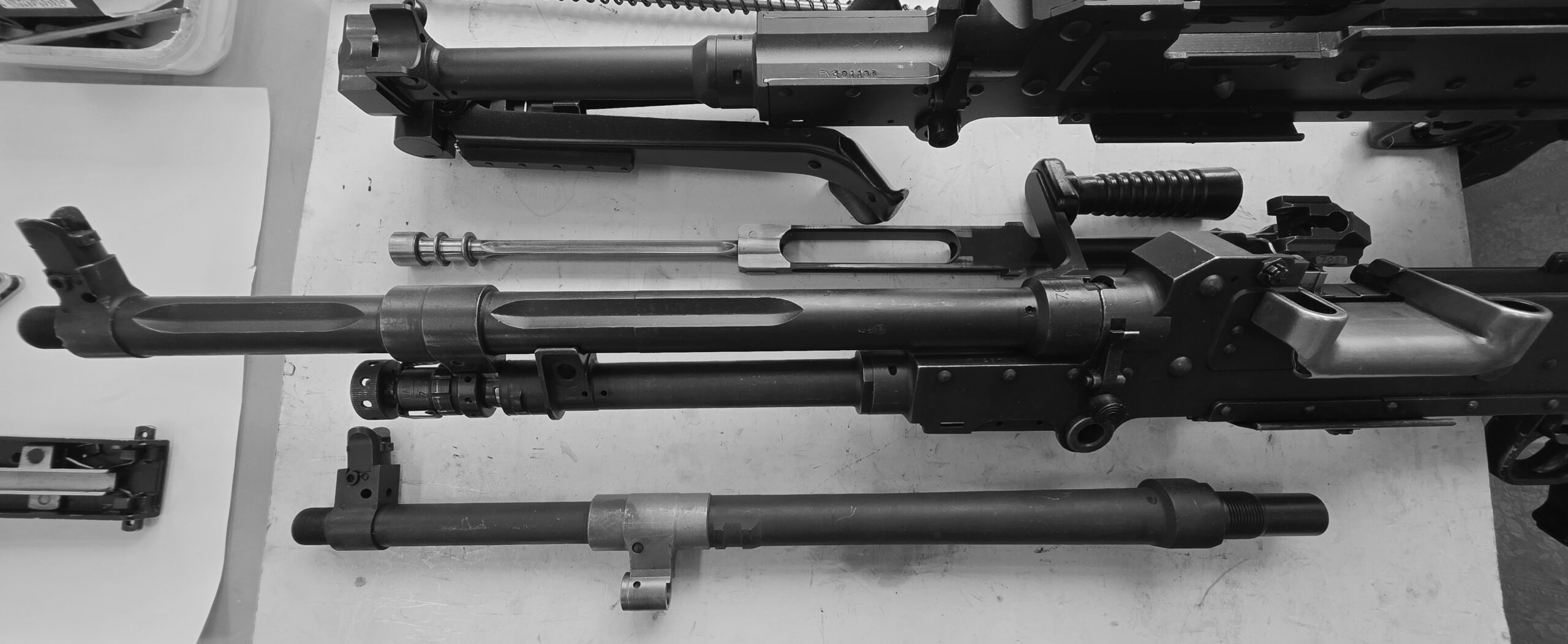

SPARE PARTS, BARRELS, TOOLS AND ACCESORIES

The DCI manufacturer and supplies a full range of the spare-parts, barrels, tools and accessories related to 7.62 mm General Purpose Machine gune type MAG58. The DCI as supplier use its experience and expertise to assure reliability certify by NATO ACAQ quality certification.

AMMUNITION EMPLOYING

7.62 mm GPMG DMG-762-01 is operating by 7.62×51 mm NATO ammunitions:

  • Armor-Piercing-Incendiary (API);
  • Armor-Piercing-Incendiary-Tracer (APIT)
  • Armor-Piercing (AP)
  • Training
